Crane End Carriage

Essential components for overhead and gantry cranes, supporting the crane bridge and enabling smooth travel along runways. Suitable for various crane types and capacities. Ensures stable, reliable movement and reduces maintenance for efficient material handling.

Crane end carriage includes single girder overhead crane end carriage, double girder overhead crane end carriage and suspension overhead crane end carriage. Overhead crane end carriage also divided into European type overhead crane end carriage and ordinary overhead crane end carriage.

Crane End Carriages

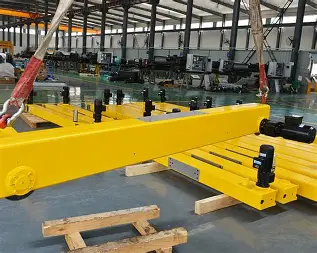

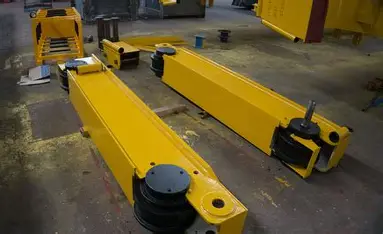

There are two end carriages in the bridge crane, which are installed on both ends of the main beam. The crane end carriages which can be used to support the bridge, which is usually made by Q235B steel.The main body of the end carriage adopts the integral one-time forming, high precision, low alloy structure and high strength and flexibility.

Crane end carriage applied to single girder overhead traveling crane

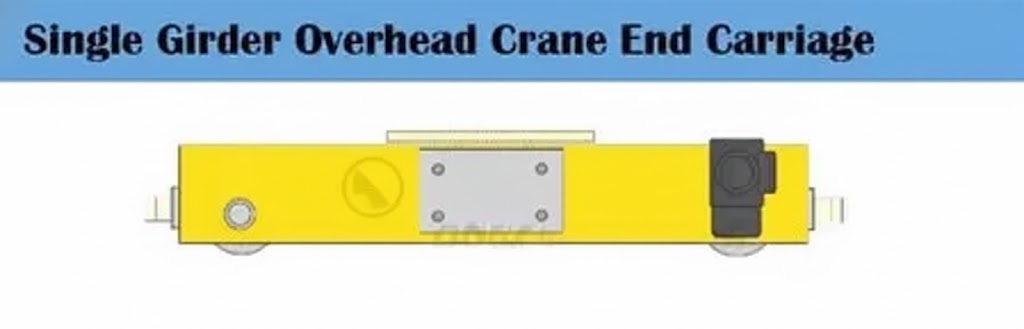

Single Girder Overhead Crane End Carriage Design

Ordianry Single Girder Overhead Crane End Carriage

European Type Single Girder Overhead Crane End Carriage

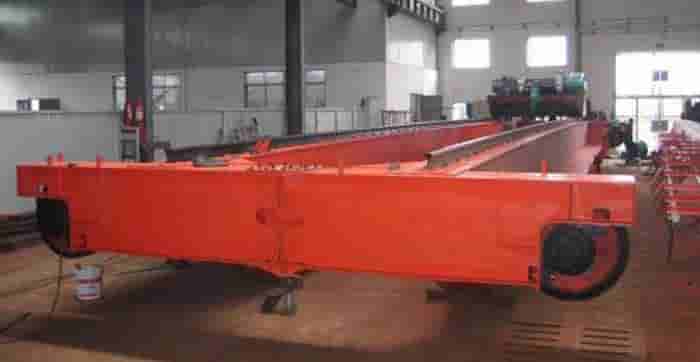

Crane end carriage used in double girder overhead traveling crane

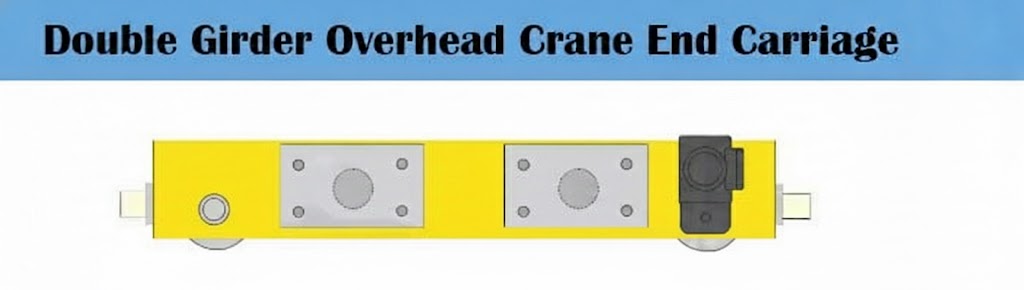

Double Girder Overhead Crane End Carriage Design

Double Girder Overhead Crane End Carriage

Double Girder Overhead Crane 4 Wheels End Carriage

Crane end beam for overhead traveling crane

A total of 7 different wheel diameters from 90 mm to 500 mm
Span up to 40 m
Safe working load from 63 kg to 50,000 kg

For single and double-girder overhead travelling cranes, suspension cranes and travelling structures

European complete end beam with modular design and direct drive.
Compact structure ensuring high precision.
Variable frequency drive (VFD) for smooth and stable running.
Small tonnage beam uses standard cold-formed steel hollow sections.
Large tonnage beam manufactured with automatic steel plate welding.
Standardized connections with fully interchangeable components.

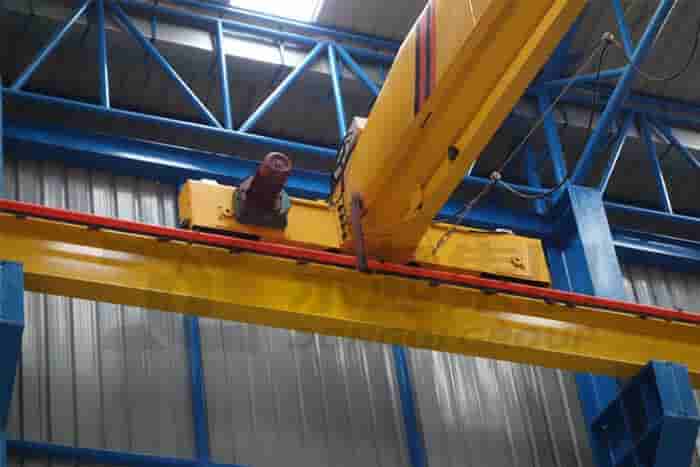

Crane end carriage applied to suspension overhead crane

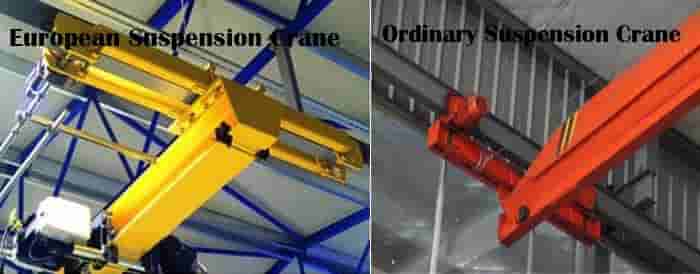

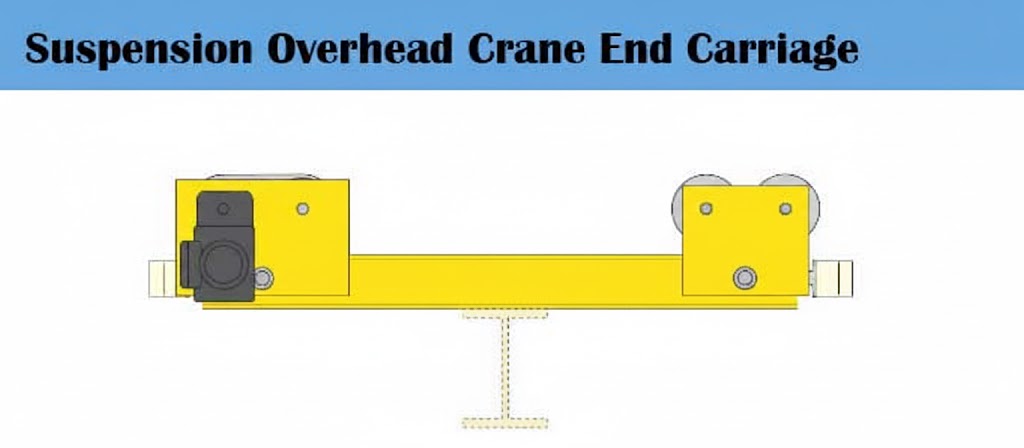

Suspension Overhead Crane End Carriage

Crane end beam for suspension overhead cranes

4 different wheel diameters
Span up to 28 m
Safe working load from 63 kg to 10,000 kg

Crane end beam for suspension overhead cranes - Advantages

Crane end beam: High geometric precision steel structure.
Crane beam connection: Connection between crane girder and end beam using high-strength bolt or self-locking connection.
Four-wheel pedestal: Optimally adapted to the crane track, reducing rail stress; specially designed end-beam profiles minimize deflection of the trolley running track.
Travel drive: Rugged wheel drive with lifetime lubrication ensures smooth start-up and braking with minimal load sway; DC disc brakes provided as standard.
Wheel / rail system: High-quality ductile iron wheels with excellent self-lubricating properties and maintenance-free ball bearings.

Dongqi Group can provide you not only crane end carriage but also crane end carriage design. We design crane end carriage according to the crane parameters and workshop condition. Dongqi Group has our own crane spare parts manufacturing workshop, if you have any crane spare parts, please contact us freely.
